EF-012669

Three- Electrode Style Air-Tight EC Cell Kit for Sample Volume 5-10 ml

Log in to see this product's price

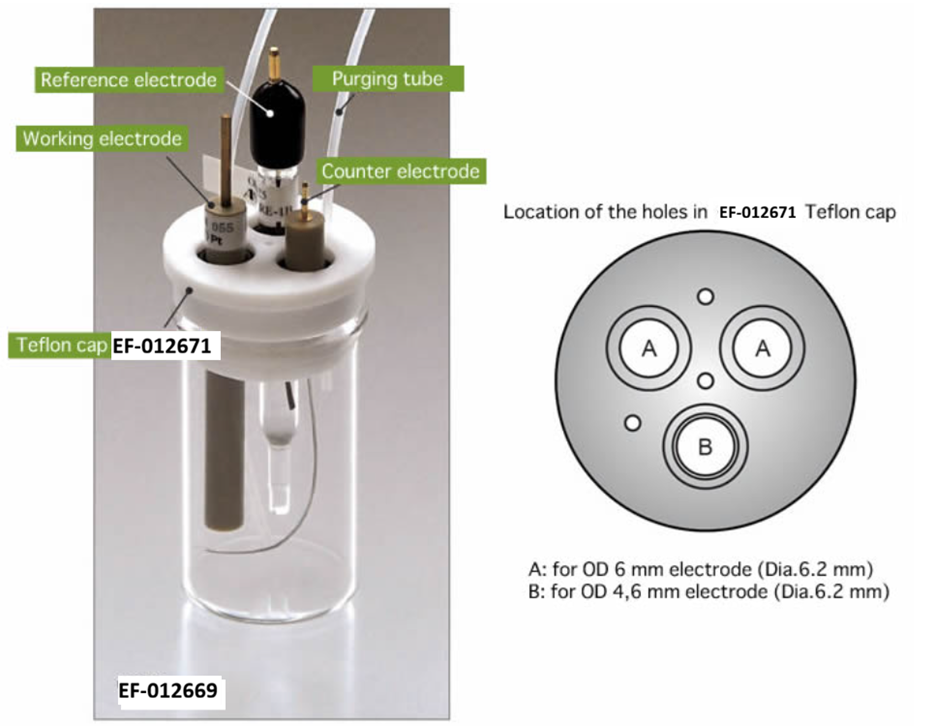

This fully airtight cell kit is designed for three-electrode EC measurements with sample volumes of 5–10 mL. The Teflon cap includes ports for the working, reference, and counter electrodes and can be configured as a sealed cell by inserting the O-ring into the machined groove. A microelectrode can also be installed in the working electrode port, making this cell well suited for measurements of ultra-low currents.

Kit includes the following:
- 20 ml Non-Jacketed Vials (Qty. 7)
- EF-012671Teflon Cap for 5-10 mL Air-tight EC Cells
- Platinum Counter Electrode – Length 5 cm
- Purging tube - Length 30 cm

Working and Reference electrodes are sold separately.

Contact Us to order individual components.

Optional add-on:
- EF-001051 20 ml Jacketed Cell Vial can be incorporated with this cell for sensitive reactions to maintain stable and predictable reaction conditions.

Category: Electroanalytical Chemistry
